SCPPNT::Matrix< T > Class Template Reference

Simple concrete dense matrix class for numerical computation. More...

#include <cmat.h>

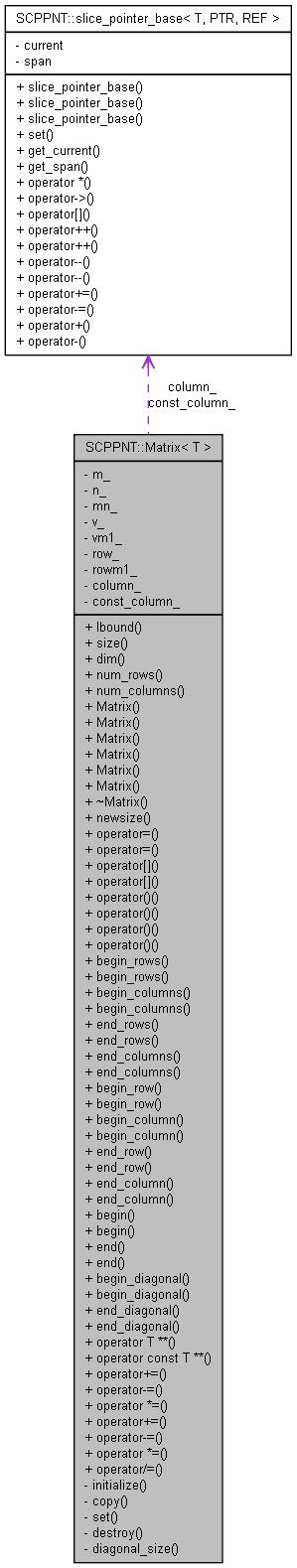

Collaboration diagram for SCPPNT::Matrix< T >:

[legend]

List of all members.

Public Types
typedef Subscript	size_type
	Subscript type.
typedef T	value_type
	Type of elements stored in matrix.
typedef T	element_type
	Type of elements stored in matrix.
typedef T *	pointer
	Pointer to type stored in matrix.
typedef T &	reference
	Reference to type stored in matrix.
typedef const T &	const_reference
	Reference to type stored in constant matrix.
typedef T *	iterator
	Iterator over elements in matrix.
typedef const T *	const_iterator
	Iterator over elements in constant matrix.
typedef T *	row_iterator
	Iterator over elements of a row.
typedef const T *	const_row_iterator
	Iterator over constant elements of a row.
typedef slice_pointer_base< T, T *, T & >	column_iterator
	Iterator over elements of a column.
typedef slice_pointer_base< T, const T *, const T & >	const_column_iterator
	Iterator over constant elements of a column.
typedef row_iterator *	rows_iterator
	Iterator over row iterators (points to row_iterator object for a row).
typedef const_row_iterator *	const_rows_iterator
	Iterator over row iterators (points to const_row_iterator object for a row).
typedef column_iterator *	columns_iterator
	Iterator over column iterators (points to column_iterator object for a column).
typedef const_column_iterator *	const_columns_iterator
	Iterator over column iterators (points to const_column_iterator object for a column).
typedef slice_pointer_base< T, T *, T & >	diag_iterator
	Iterator over elements of a matrix diagonal.
typedef slice_pointer_base< T, const T *, const T & >	const_diag_iterator
	Iterator over constant elements of a matrix diagonal.
Public Member Functions
Subscript	lbound () const
	Returns lower bound of subscript.
Subscript	size () const
	Return total number of elements in matrix.
Subscript	dim (Subscript d) const
	Return number of rows if argument is 1, number of columns if argument is 2.
Subscript	num_rows () const
	Return number of rows in matrix.
Subscript	num_columns () const
	Return number of columns in matrix.
	Matrix ()
	Default constructor.
	Matrix (const Matrix< T > &A)
	Copy constructor.
	Matrix (Subscript M, Subscript N)
	Construct matrix of a particular size, but do not initialize elements to any value.
	Matrix (Subscript M, Subscript N, const T value)
	Construct and assign all elements to a particular value.
	Matrix (Subscript M, Subscript N, const std::string &s)
	Constructor that reads elements from a string.
template<class IT>
	Matrix (IT begin, Subscript number_rows, Subscript number_columns)
	Construct from an iterator giving initial elements in row-major order.
	~Matrix ()
	Destructor.
Matrix< T > &	newsize (Subscript M, Subscript N)
	Resize matrix (old elements are distroyed).
Matrix< T > &	operator= (const Matrix< T > &A)
	Matrix assignment.
Matrix< T > &	operator= (const T &scalar)
	Scalar assignment.
row_iterator	operator[] (Subscript i)
	Return iterator to elements in row i+1 (0-offset).
const_row_iterator	operator[] (Subscript i) const
	Return iterator to constant elements in row i+1 (0-offset).
reference	operator() (Subscript i)
	Return i-th (1-offset) element of matrix when treated as a vector (row major ordering).
const_reference	operator() (Subscript i) const
	Return i-th (1-offset) constant element of matrix when treated as a vector (row major ordering).
reference	operator() (Subscript i, Subscript j)
	Return element in row i and column j, where i and j are 1-offset indices.
const_reference	operator() (Subscript i, Subscript j) const
	Return constant element in row i and column j, where i and j are 1-offset indices.
rows_iterator	begin_rows ()
	Return iterator pointing to row iterator for first row (iterator over row iterators).
const_rows_iterator	begin_rows () const
	Return iterator pointing to row iterator for first row (constant version).
columns_iterator	begin_columns ()
	Return iterator pointing to column iterator for first column (iterator over column iterators).
const_columns_iterator	begin_columns () const
	Return iterator pointing to column iterator for first column (constant version).
rows_iterator	end_rows ()
	Return iterator pointing to row iterator for one past last row (iterator over row iterators).
const_rows_iterator	end_rows () const
	Return iterator pointing to row iterator for one past last row (constant version).
columns_iterator	end_columns ()
	Return iterator pointing to column iterator for one past last column (iterator over column iterators).
const_columns_iterator	end_columns () const
	Return iterator pointing to column iterator for one past last column (constant version).
row_iterator	begin_row (Subscript index)
	Return iterator pointing to first element in row 'index' (1-offset).
const_row_iterator	begin_row (Subscript index) const
	Return iterator pointing to first element in row 'index' (1-offset).
column_iterator	begin_column (Subscript index)
	Return iterator pointing to first element in column 'index' (1-offset).
const_column_iterator	begin_column (Subscript index) const
	Return iterator pointing to first element in column 'index' (1-offset).
row_iterator	end_row (Subscript index)
	Return iterator pointing to one past last element in row 'index' (1-offset).
const_row_iterator	end_row (Subscript index) const
	Return iterator pointing to one past last element in row 'index' (1-offset).
column_iterator	end_column (Subscript index)
	Return iterator pointing to one past last element in column 'index' (1-offset).
const_column_iterator	end_column (Subscript index) const
	Return iterator pointing to one past last element in column 'index' (1-offset).
iterator	begin ()
	Returns iterator pointing to first element of matrix (consecutive element accessed by row).
const_iterator	begin () const
	Returns iterator pointing to first element of matrix (consecutive element accessed by row).
iterator	end ()
	Iterator pointing to one past last element of matrix.
const_iterator	end () const
	Iterator pointing to one past last element of matrix.
diag_iterator	begin_diagonal (Subscript row, Subscript column)
	Returns iterator pointing to first element of matrix diagonal.
const_diag_iterator	begin_diagonal (Subscript row, Subscript column) const
	Returns iterator pointing to first element of matrix diagonal.
diag_iterator	end_diagonal (Subscript row, Subscript column)
	Returns iterator pointing to one past last element of matrix diagonal.
const_diag_iterator	end_diagonal (Subscript row, Subscript column) const
	Returns iterator pointing to one past last element of matrix diagonal.
	operator T ** ()
	convert to T**
	operator const T ** () const
	convert to const T**
template<class MAT>
Matrix< T > &	operator+= (const MAT &rhs)
	Add matrix rhs to matrix.
template<class MAT>
Matrix< T > &	operator-= (const MAT &rhs)
	Subtract matrix rhs from matrix.
template<class MAT>
Matrix< T > &	operator *= (const MAT &rhs)
	Matrix multiply of matrix times rhs (rhs must be square).
Matrix< T > &	operator+= (const T &value)
	Add scalar to all elements of the matrix.
Matrix< T > &	operator-= (const T &value)
	Subtract scalar from all elements of the matrix.
Matrix< T > &	operator *= (const T &value)
	Multiply each element of matrix by scalar value.
Matrix< T > &	operator/= (const T &value)
	Divide each element of matrix by scalar value.

---

Detailed Description

template<class T>
class SCPPNT::Matrix< T >

Simple concrete dense matrix class for numerical computation.

Templated numerical matrix class based on Template Numerical Toolkit Matrix class. Row-oriented matrix with element access through 0-based [i][j] and 1-based (i,j) indexing, and row, column, and diagonal iterators. The matrix is stored in one contiguous piece of memory. Besides memory being allocated for the contents of the matrix, memory is also allocated for row iterators (one iterator for each row), column iterators (one iterator for each column), and column iterators over constant elements (one iterator for each column). If SCPPNT_BOUNDS_CHECK is defined then memory is allocated for row iterators over constant elements (one for each row).

This class adds the following to the TNT Matrix class:

1. Row, column, and diagonal iterators.
2. Assignment operators (+=, -=, *=, /=)
3. Errors result in an exception being thrown rather than the program being aborted.

Definition at line 110 of file cmat.h.

---

Constructor & Destructor Documentation

template<class T>

SCPPNT::Matrix< T >::Matrix	(	Subscript	M,
		Subscript	N,
		const std::string &	s
	)			[inline]

Constructor that reads elements from a string.

Constructor that reads elements from a string

Parameters:

	M	Number of rows.
	N	Number of columns.
	s	String containing initial elements of matrix in row-major order separated by white space.

Definition at line 736 of file cmat.h.

                                                                : v_(0)
  {
    initialize(M,N);
    std::istrstream ins(s.c_str());

    Subscript i, j;

    for (i=0; i<M; i++)
    for (j=0; j<N; j++)
    ins >> row_[i][j];
  }

template<class T>

template<class IT>

SCPPNT::Matrix< T >::Matrix	(	IT	begin,
		Subscript	number_rows,
		Subscript	number_columns
	)			[inline]

Construct from an iterator giving initial elements in row-major order.

Parameters:

	begin	Iterator pointing to the first element of a sequence of values assigned to elements of the matrix created in row-major order (elements in first row followed by elements in second row, etc.)
	number_rows	Number of rows in matrix created.
	number_columns	Number of columns in matrix created.

The iterator argument preceeds the number of rows and columns in this constructor in contrast to other constructors where the number of rows and columns are the first two arguments. If the number of rows and columns were the first two arguments then this template constructor can mistakenly be used instead of the Matrix(Subscript M, Subscript N, const std::string &s) constructor when constructing a matrix from a string.

Definition at line 246 of file cmat.h.

References SCPPNT::Matrix< T >::begin().

                                                                                         :
      v_(0)
    {

      initialize(number_rows, number_columns);

      iterator i = this->begin();
      Subscript n = number_rows * number_columns;
      while (n--)
      {
        *i = *begin;
        ++begin;
        ++i;
      }
    }

Here is the call graph for this function:

---

Member Function Documentation

template<class T>

Matrix< T >::diag_iterator SCPPNT::Matrix< T >::begin_diagonal	(	Subscript	row,
		Subscript	column
	)			[inline]

Returns iterator pointing to first element of matrix diagonal.

Returns iterator pointing to the first element of the matrix diagonal given by (row, column), (row+1, column+1), (row+2, column+2), ... For example, if row=1 and column=1 then an iterator pointing to the first element of the main diagnonal is returned.

Parameters:

	row	1-based row number for initial element of diagonal.
	column	1-based column number for initial element of diagonal.

Definition at line 1047 of file cmat.h.

Referenced by SCPPNT::Matrix< T >::end_diagonal().

  {
    Subscript num_elem = 0;

#ifdef SCPPNT_BOUNDS_CHECK

    if (row < 1 || row > m_ || column < 1 || column > n_) BoundsError("SCPPNT::Matrix::begin_diagonal(row, column)");
    num_elem = diagonal_size(row, column);

#endif

    /* Pass zero for number of elements if SCPPNT_BOUNDS_CHECK
     is not defined, since in that case the number of elements is not used. */
    return diag_iterator(v_ + column-1 + n_*(row-1), n_ + 1, num_elem);
  }

Here is the caller graph for this function:

template<class T>

Matrix< T >::const_diag_iterator SCPPNT::Matrix< T >::begin_diagonal	(	Subscript	row,
		Subscript	column
	)			const [inline]

Returns iterator pointing to first element of matrix diagonal.

Returns iterator pointing to the first element of the matrix diagonal given by (row, column), (row+1, column+1), (row+2, column+2), ... For example, if row=1 and column=1 then an iterator pointing to the first element of the main diagnonal is returned.

Parameters:

	row	1-based row number for initial element of diagonal.
	column	1-based column number for initial element of diagonal.

Definition at line 1074 of file cmat.h.

  {
    Subscript num_elem = 0;

#ifdef SCPPNT_BOUNDS_CHECK

    if (row < 1 || row > m_ || column < 1 || column > n_) BoundsError("SCPPNT::Matrix::begin_diagonal(row, column)");
    num_elem = diagonal_size(row, column);

#endif

    /* Pass zero for number of elements if SCPPNT_BOUNDS_CHECK
     is not defined, since in that case the number of elements is not used. */
    return const_diag_iterator(v_ + column-1 + n_*(row-1), n_ + 1, num_elem);
  }

template<class T>

Matrix< T >::diag_iterator SCPPNT::Matrix< T >::end_diagonal	(	Subscript	row,
		Subscript	column
	)			[inline]

Returns iterator pointing to one past last element of matrix diagonal.

Returns iterator pointing to the one past last element of the matrix diagonal given by (row, column), (row+1, column+1), (row+2, column+2), ... For example, for a square matrix with n rows and columns end_diagonal(1, 1) returns an iterator pointing to the element (row+n, column+n), which is one past the last element of the main diagonal.

Parameters:

	row	1-based row number for initial element of diagonal.
	column	1-based column number for initial element of diagonal.

Definition at line 1102 of file cmat.h.

References SCPPNT::Matrix< T >::begin_diagonal().

  {
    diag_iterator it = begin_diagonal(row, column);
    return it + diagonal_size(row, column);
  }

Here is the call graph for this function:

template<class T>

Matrix< T >::const_diag_iterator SCPPNT::Matrix< T >::end_diagonal	(	Subscript	row,
		Subscript	column
	)			const [inline]

Returns iterator pointing to one past last element of matrix diagonal.

Returns iterator pointing to the one past last element of the matrix diagonal given by (row, column), (row+1, column+1), (row+2, column+2), ... For example, for a square matrix with n rows and columns end_diagonal(1, 1) returns an iterator pointing to the element (row+n, column+n), which is one past the last element of the main diagonal.

Parameters:

	row	1-based row number for initial element of diagonal.
	column	1-based column number for initial element of diagonal.

Definition at line 1119 of file cmat.h.

References SCPPNT::Matrix< T >::begin_diagonal().

  {
    const_diag_iterator it = begin_diagonal(row, column);
    return it + diagonal_size(row, column);
  }

Here is the call graph for this function:

---

The documentation for this class was generated from the following file:

• C:/programs/SCPPNT/src/include/cmat.h

---
